Microwave LOS & View Shed Analysis
We have developed tools which can work seamlessly with 6 inch resolution DSM (Digital Surface Model) provided by nearmap.
These tools are now available for licensing in the form of a Docker Image which can be run on your premises/cloud on you data.
Microwave LOS Qualification
Input CSV
This tool will test all possible combinations of links between the provided locations.
Fresnel zone will be calculated for the given freq.
Output

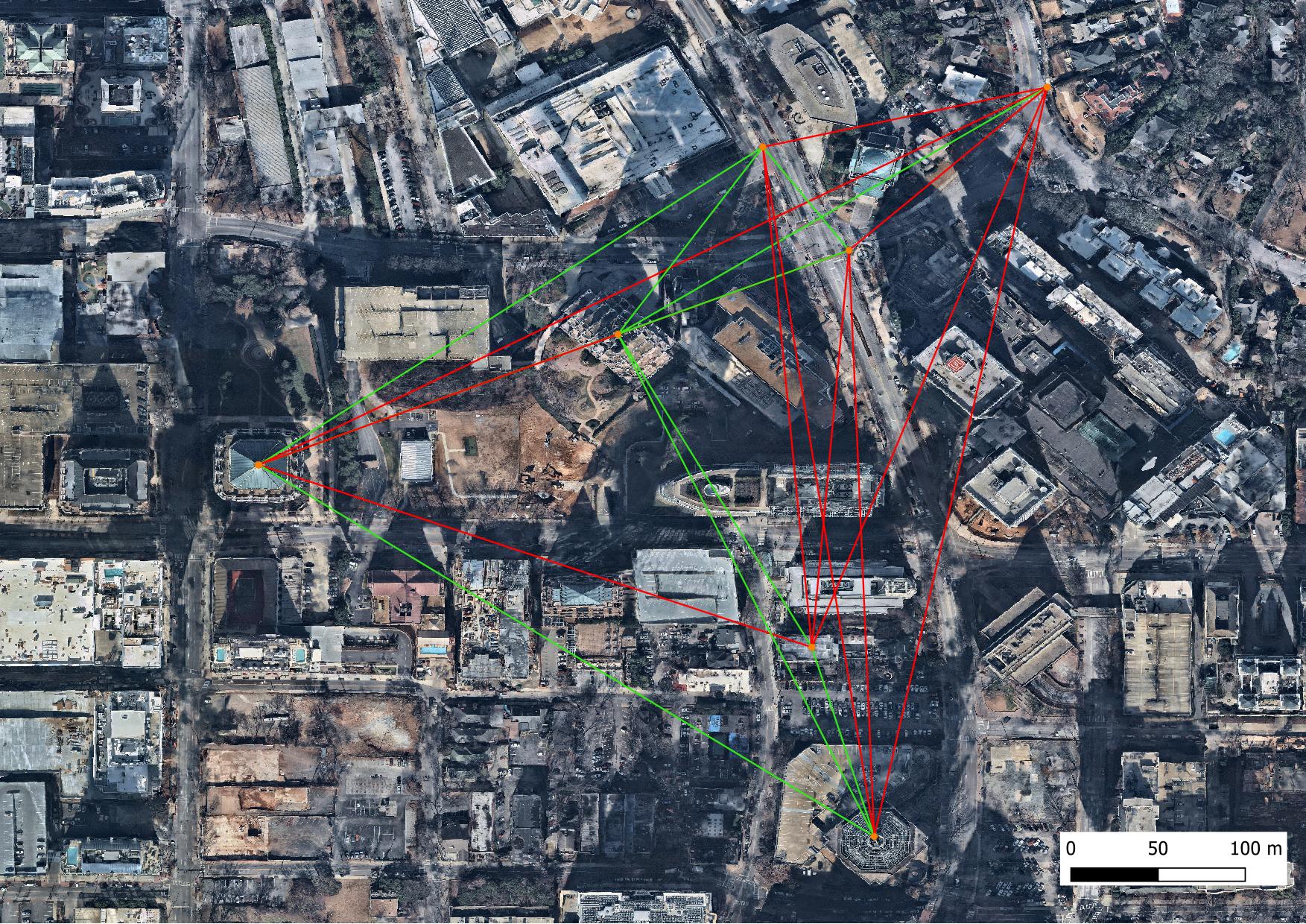

Green : Qualified Links
Red : Not Qualified
Summary Report with each link qualification
Fresnel zone plots showing the exact points with obstruction
zoomed-in view showing obstruction in Fresnel zone.
6 inch resolution DSM allows us to detect 20cm obstructions from 100’s of meters away
View shed Analysis
INPUT CSV
The tool will test View shed from all the given locations for the specified radius m
View Shed from src_indx 5
Light Blue : Outline of Building that can be served
Shaded Blue: Locations on Building where CPE can placed for Direct LOS to Site 5
Zoomed view of View Shed
View Shed summary table generated by tool
